Telescopic Arm
SANDCO-System
NeXT Gen
Telescopic Arm
Inquiry

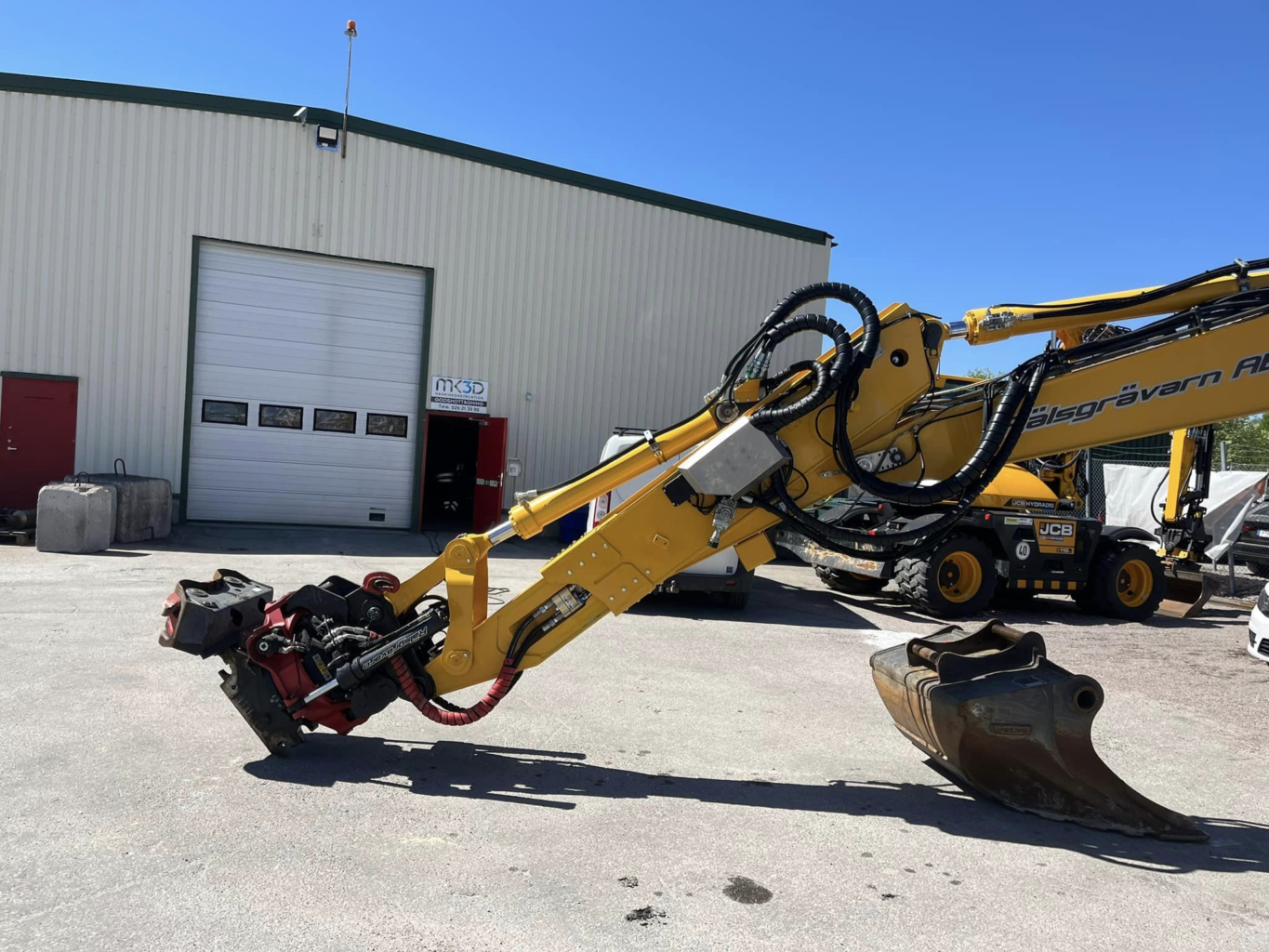

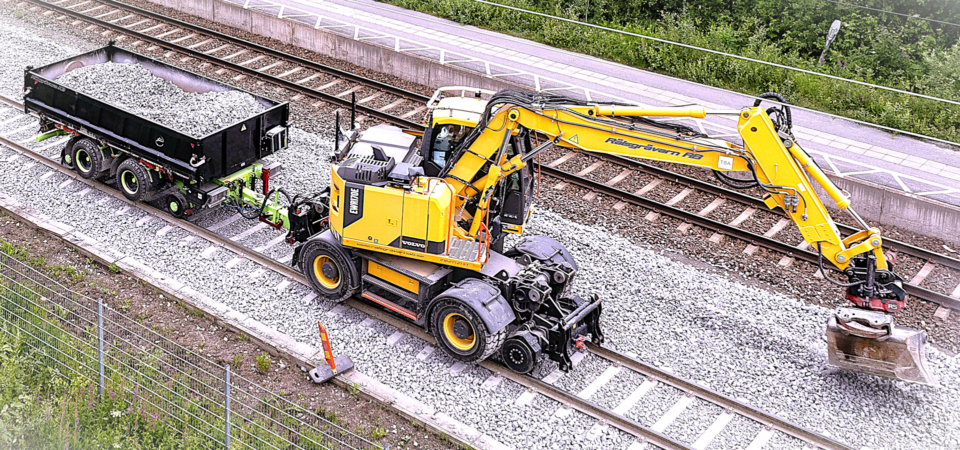

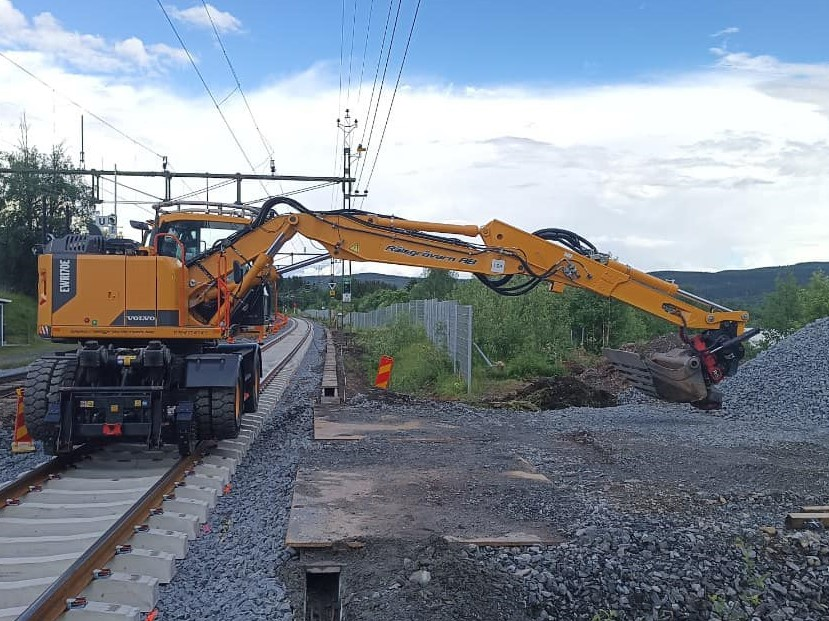

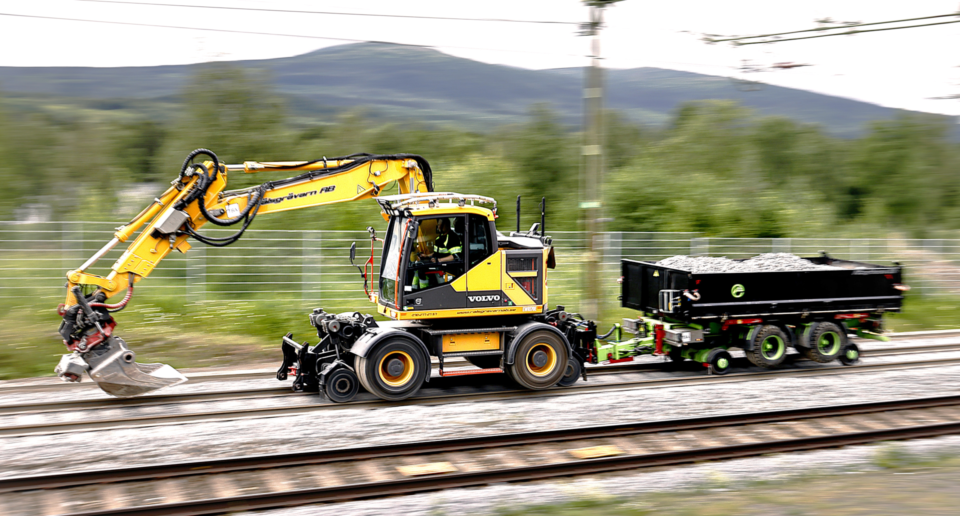

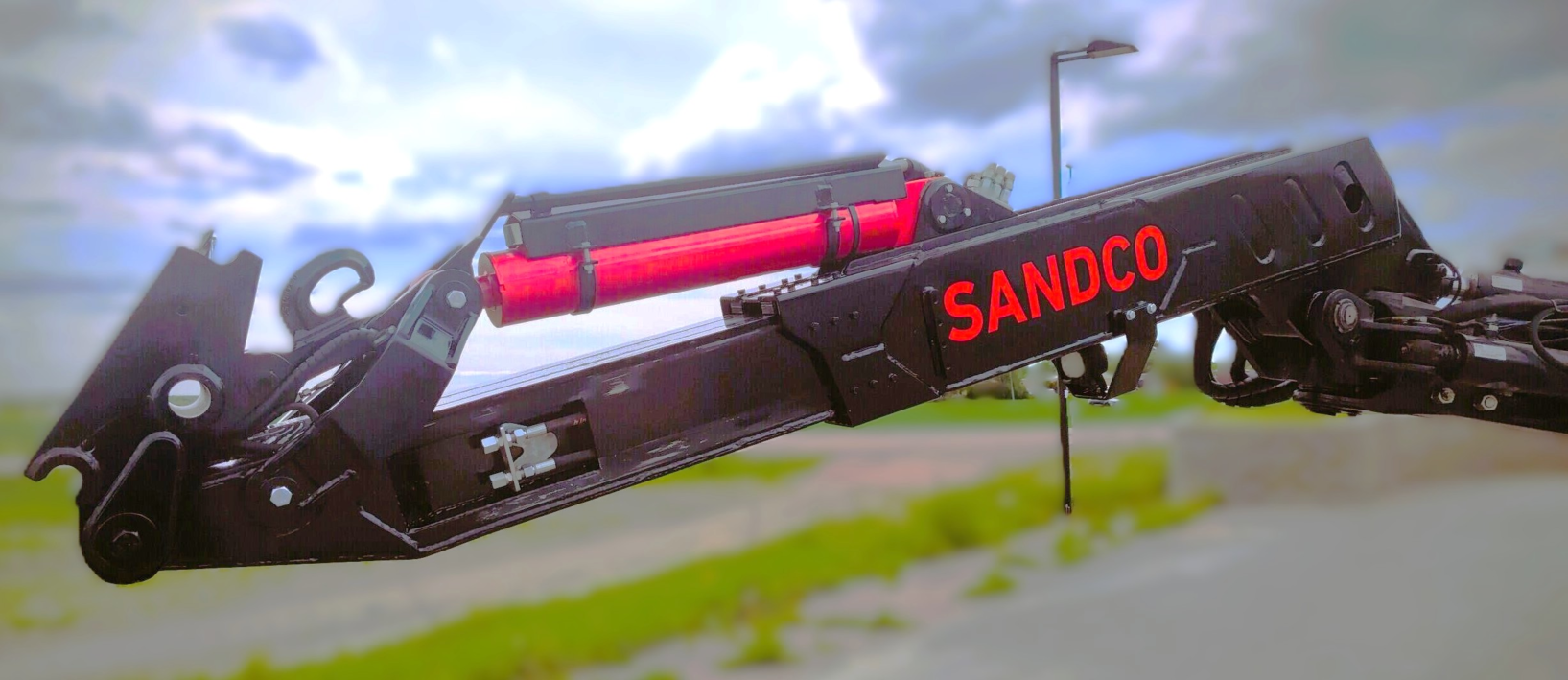

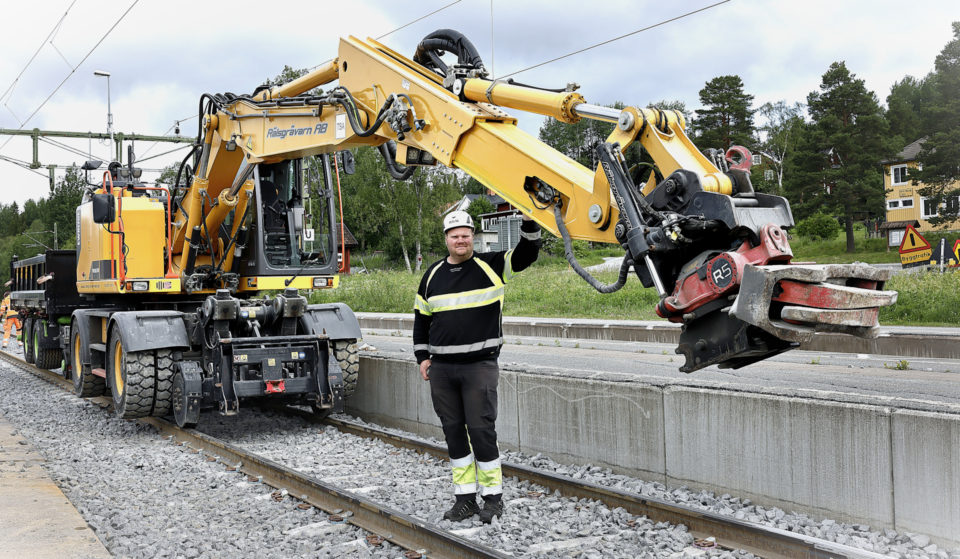

SANDCO-System telescopic arms optimize the machine's reach, digging depth, and stability in every work operation. The telescopic arm adds a completely new dimension to the digging movement during lifting, digging, and leveling tasks. Fewer machine movements and motion sequences result in faster, more efficient, and safer work—with reduced fuel consumption as a result.
| Machine Size | Article | Reach | Length | Length | Retraction | Weight |
| Ton | no. | Max, mm | Min, mm | Max, mm | force, kg (200 bar) | kg |
| 20 - 26 | SBS950 | 1400 | 2200 | 3600 | 10000 | 1170 |
| 15 - 20 | SBS750 | 1200 | 2100 | 3300 | 8800 | 1050 |
| 12 - 18 | SBS550 | 1100 | 1900 | 3000 | 6200 | 800 |
| 8 - 13 | SBS350 | 1050 | 1900 | 2950 | 4000 | 650 |
